| Kelengkapan : | General : |
| UNIT AIS ICOM MA-150 TR | – Frequency coverage : 161.500 MHz to 162.025 MHz |
| NMEA 2000 | – Type of emission : 16K0GXW (GMSK) |
| ANTENNA GPS | – Antenna impedence : 50Ω nominal |
| MANUAL BOOK | – Intermediate Frequency |
| – CH-A 1st: 21.700 MHz, 2nd: 450 kHz | |
| Output Power : 2 Watt | – CH-B 1st: 30.150 MHz, 2nd: 450 kHz |
| NMEA : Konektivitas NMEA 2000®, 0183/-HS | – Operating temperature range -20°C to +60°C; -4°F to +140°F |
| Peringkat tahan air : IPX7 | Power supply requirement |
| Negative ground: | |
| Fitur keamanan : | 12V or 24V DC nominal |
| – Fungsi Alarm Tabrakan | (9.6V to 31.2V) |
| Saat kapal masuk ke kisaran CPA atau TCPA, ikon kapal berkedip dan suara peringatan dikeluarkan pada tampilan plotter (saat terhubung ke peralatan audio eksternal). | Current drain (at 12V DC) |
| – Jangkar Jam Alarm | Tx:1.5A |
| Alarm berbunyi saat kapal hanyut saat berlabuh. | Rx:0.7A |
| – Man Overboard | Dimensions (approximate) |
| Saat pengguna menerima sinyal Man Overboard (MOB), MA-510TR dapat mengatur MOB sebagai tujuan. | (Projections not included) 166.2 (W) × 110.2 (H) × 92.5 (D) mm, 6.5 (W) × 4.3 (H) × 3.6 (D) inches |
| Weight (approximate) 700g, 1.5 lbs |

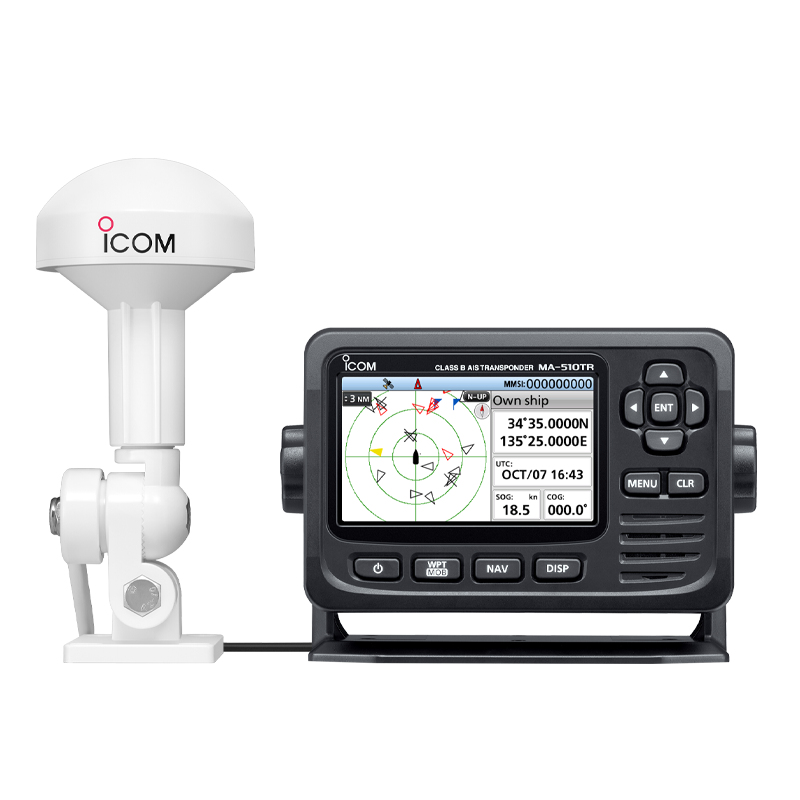

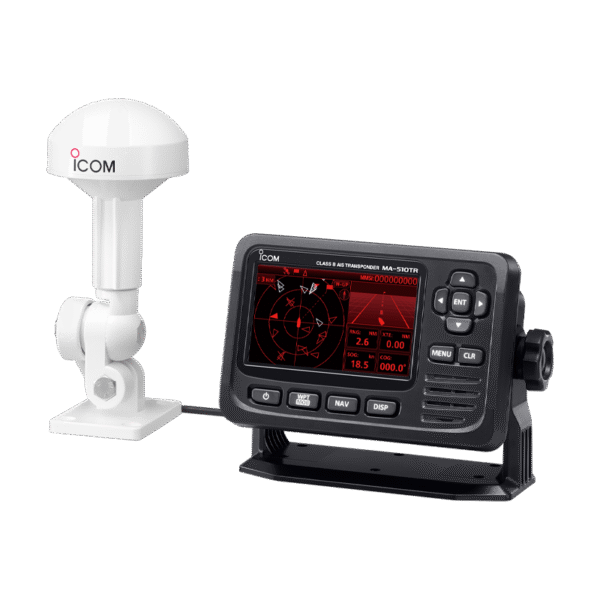

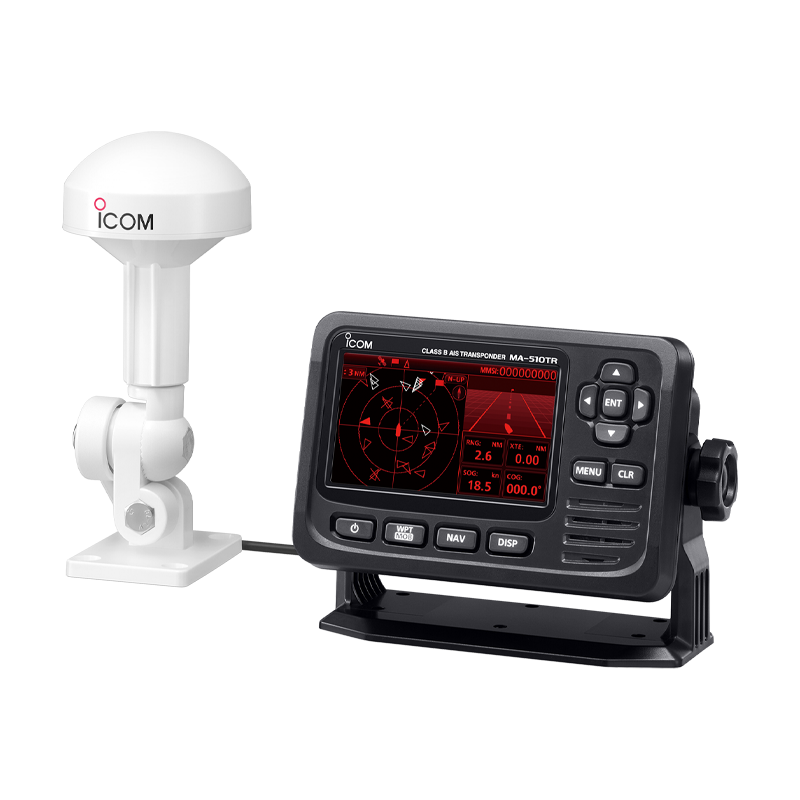

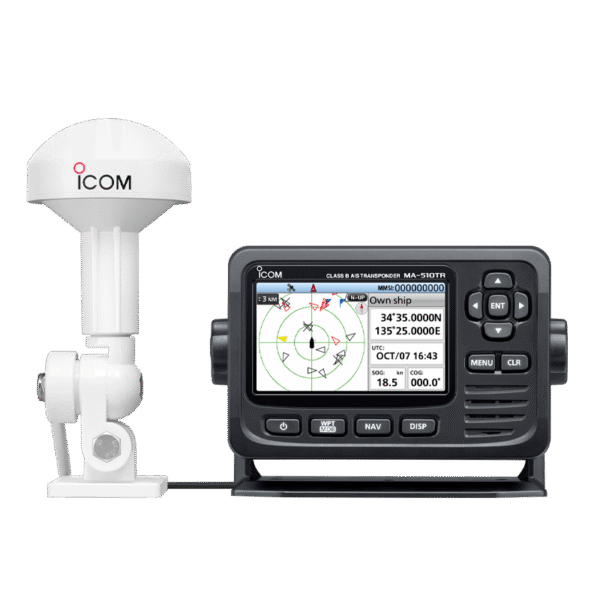

Icom MA-510TR Class B
Produk : Class B AIS Transponder
Brand : Icom
Tipe : MA-5100TR
The Class B AIS Transponder with GPS navigation function and NMEA 2000®-connectivity and receives both A and B AIS signals. With both A and B AIS signals, the range of detection increases safety. Leisure, fishing or cruising vessels can stay safe and informed on the open sea with this feature-packed transponder.
Share :
| Kelengkapan : | General : |
| UNIT AIS ICOM MA-150 TR | – Frequency coverage : 161.500 MHz to 162.025 MHz |
| NMEA 2000 | – Type of emission : 16K0GXW (GMSK) |
| ANTENNA GPS | – Antenna impedence : 50Ω nominal |
| MANUAL BOOK | – Intermediate Frequency |
| – CH-A 1st: 21.700 MHz, 2nd: 450 kHz | |
| Output Power : 2 Watt | – CH-B 1st: 30.150 MHz, 2nd: 450 kHz |
| NMEA : Konektivitas NMEA 2000®, 0183/-HS | – Operating temperature range -20°C to +60°C; -4°F to +140°F |
| Peringkat tahan air : IPX7 | Power supply requirement |
| Negative ground: | |
| Fitur keamanan : | 12V or 24V DC nominal |
| – Fungsi Alarm Tabrakan | (9.6V to 31.2V) |
| Saat kapal masuk ke kisaran CPA atau TCPA, ikon kapal berkedip dan suara peringatan dikeluarkan pada tampilan plotter (saat terhubung ke peralatan audio eksternal). | Current drain (at 12V DC) |
| – Jangkar Jam Alarm | Tx:1.5A |
| Alarm berbunyi saat kapal hanyut saat berlabuh. | Rx:0.7A |
| – Man Overboard | Dimensions (approximate) |
| Saat pengguna menerima sinyal Man Overboard (MOB), MA-510TR dapat mengatur MOB sebagai tujuan. | (Projections not included) 166.2 (W) × 110.2 (H) × 92.5 (D) mm, 6.5 (W) × 4.3 (H) × 3.6 (D) inches |
| Weight (approximate) 700g, 1.5 lbs |
